CASE 851 EX

No reviews yet

Write a Review

The CASE 851 EX is a robust and reliable backhoe loader, popular for its low maintenance and high efficiency. It features a powerful 96 HP engine and a torque of 420 NM, ensuring superior performance in construction tasks. With a bucket capacity of 1.2 cubic meters and a maximum lifting capacity of 1530 kg, this machine excels in material handling. The 851 EX also boasts a substantial operating weight of 8230 kg for stability, and a spacious fuel tank of 129 liters to minimize refueling time. Its durable tyres and advanced hydraulic system ensure safety and operational efficiency in demanding environments.

Price on Request^*

^*Prices are subjected to change

EMI ₹ 20,362 For 5 YearsEMI Calculator

Key Features of CASE 851 EX

Specifications of CASE 851 EX

General
- Sub Category
  Backhoe Loader
Engine
- Gross Power
  96 Hp
- Compliant
  BS-III
- Model
  FPT S8000
- Displacement
  3900 cc
- Air Intake Type
  Turbocharged
- Maximum Torque
  420 NM
Hydraulic System
- Pump type
  Gear Pump
- System Relief Pressure
  210 Bar
- Pump Flow
  151 lpm
Power train
- Transmission make and model
  CARRARO 2WD TLB1
- Powertrain Type
  4 forward and 4 reverse travel speeds with power Shuttle
Steering
- Type
  Power Steering
- System Pressure
  140 Bar
- Unit Displacement
  125 CC
Loader General Dimension
- Bucket Capacity Std
  1.2 Cum
- Hinge Pin Height
  3600 mm
- Dump Angle
  45 °
- Max Pay Load
  2050 Kg
- Dump Height
  2700 mm
- Load Over Height
  3800 mm
- Reach At Ground
  2100 mm
- Bucket Breakout Force
  6570 Kgf
Backhoe Loader Dimension
- Maxd Dig Depth
  4700 mm
- Max Load Over Height
  3800 mm
- Reach ground level to Swing Center
  5900 mm
- Max Working Height
  5700 mm
- Bucket Breakout Force
  5630 Kgf
- Safe Working Load
  1100 Kg
- Bucket Rotation
  204 Degree
- Max. lift capacity
  1530 Kg
Overall Dimension & Weight
- Minimum Ground Clearance
  400 mm
- Wheelbase
  2200 mm
- Max Operating Weight
  8230 Kg
- Overall transport Height
  3800 mm
Service Capacities
- Engine Oil
  9.1 Ltr
- Coolant
  20 Ltr.
- Fuel Tank
  129 Ltr
- Hydraulic oil - System
  110 Ltr
- Rear Axle
  17 Ltr.
- transmission Oil Capacitysystem
  22 Ltr.
Axle
- Rear
  CARRARO 28.32M
- Front
  CNH PS1300 (2WD)
Brakes
- Brakes service
  Wet multi-discs
- Brakes Parking
  Manual, with lever
Tyre
- Standard tyre front
  9.0x16 - 16 PR
- HD tyre rear optional
  14X25 - 20 PR
- standard tyre rear
  16.9x28 - 12 PR
Travel System
- Reverse
  7.4/12/ Not Recommended
- Forward
  6.2/10/20.7/39.2

CASE 851 EX Brochure

Download the brochure in just one click to view CASE 851 EX price, specs and features of all the variants.

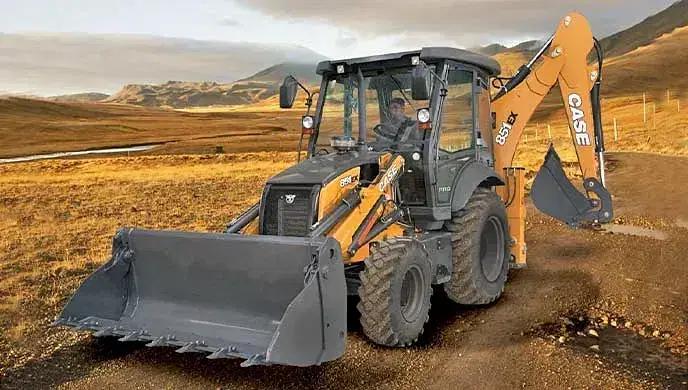

CASE 851 EX images

CASE 851 EX User Reviews & Rating

This product has not been reviewed yet. Your opinion could help others

Your questions, answered

Can not find what you are looking for?

Ask our experts

What is the engine power of the CASE 851 EX?
The CASE 851 EX is equipped with a powerful engine that delivers 96 HP and 420 NM of torque.
What is the bucket capacity of the CASE 851 EX?
The CASE 851 EX has a standard bucket capacity of 1.2 cubic meters.
How much can the CASE 851 EX lift?
The CASE 851 EX has a maximum lift capacity of 1530 kg.
What is the fuel tank capacity of the CASE 851 EX?
The CASE 851 EX has a fuel tank capacity of 129 liters.
What is the operating weight of the CASE 851 EX?
The operating weight of the CASE 851 EX is 8230 kg.
What type of tyres does the CASE 851 EX have?
The CASE 851 EX comes with 9.0x16 - 16 PR front tyres and 16.9x28 - 12 PR rear tyres.
What is the wheelbase of the CASE 851 EX?
The wheelbase of the CASE 851 EX is 2200 mm.
What is the hydraulic system capacity of the CASE 851 EX?
The hydraulic system of the CASE 851 EX has a capacity of 110 liters.
What is the maximum reach at full height for the CASE 851 EX?
The CASE 851 EX can reach a full height of 1190 mm.
