CAT 140M AWD

CAT 140M AWD

No reviews yet
Write a Review

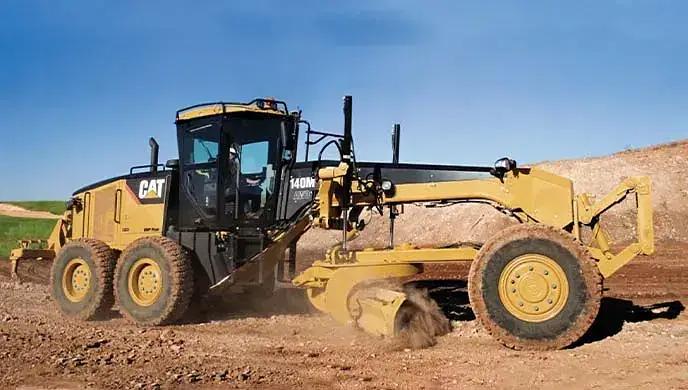

The CAT 140M AWD is a robust motor grader designed for creating smooth and even surfaces, essential for road construction and infrastructure projects. It features a powerful Cat C9.3 engine delivering 179 Hp, maximizing productivity. With a substantial fuel tank capacity of 416 liters, it supports extended operations. The machine boasts a top reverse speed of 23 Mph, facilitating efficient backward grading. Its length of 8754 mm ensures stability across diverse terrains. The CAT 140M AWD is a cost-effective choice for construction needs in India.
Read more

Price on Request*
*Prices are subjected to change
EMI ₹ 20,362 For 5 YearsEMI Calculator

Key Features of CAT 140M AWD

    Specifications of CAT 140M AWD

    • General

      • Sub Category
        Motor Grader
    • SERVICE REFILL CAPACITIES

      • Hydraulic System
        64 L
      • Fuel Tank
        416 L
      • Cooling System
        40 L
      • Circle Drive
        7 L
    • Dimensions

      • Length of machine
        8754 mm
    • Power train

      • Engine Model
        Cat C9.3
      • Net power iso 9249 sae j1349 eec 80 1269
        179 Hp
      • Maximum Torque iso 9294
        1237 NM
      • Top Forward Speed
        46.6 Kmph
      • Top reverse speed
        23 Mph
      • Engine RPM
        2000 rpm
      • Bore
        115 mm
      • Stroke
        149 mm
    • Blade Range

      • Maximum depth of cut
        715 mm
      • Maximum lift above ground
        480 mm
      • Moldboard side shift right
        660 mm
      • Moldboard side shift left
        510 mm
    • Moldboard

      • Width ( MOLDBOARD)
        3.7 mm
      • Cutting Edge
        152 mm
      • Height
        610 mm
      • Arc Radius
        413 mm
      • End Bit
        152 mm
      • Throat Clearance
        166 mm

    CAT 140M AWD Brochure

    Download the brochure in just one click to view CAT 140M AWD price, specs and features of all the variants.

    CAT 140M AWD images

    CAT 140M AWD

    CAT 140M AWD User Reviews & Rating

    This product has not been reviewed yet. Your opinion could help others

    Your questions, answered

    Can not find what you are looking for?
    Ask our experts
    • What type of equipment is the CAT 140M AWD?

      The CAT 140M AWD is a motor grader used primarily for creating smooth and even surfaces, especially in road and infrastructure projects.
    • What engine does the CAT 140M AWD use?

      The CAT 140M AWD is equipped with a Cat C9.3 engine that generates 179 Hp.
    • How much fuel can the CAT 140M AWD hold?

      The CAT 140M AWD has a fuel tank capacity of 416 liters.
    • What is the top reverse speed of the CAT 140M AWD?

      The top reverse speed of the CAT 140M AWD is 23 Mph.
    • What is the length of the CAT 140M AWD?

      The length of the CAT 140M AWD is 8754 mm.
    • Is the CAT 140M AWD cost-effective in India?

      Yes, the CAT 140M AWD is available at a cost-effective price range in India.
