JCB 3DX Plus

Key Features of JCB 3DX Plus

Specifications of JCB 3DX Plus

• General
  • Sub Category
    Backhoe Loader

• Engine
  • Model
    JCB 444
  • Displacement
    4.4 cc
  • Gross Power
    55kW (74hp) @ 2200 rpm
  • Maximum Torque
    400 NM
  • Compliant
    CEV Stage lV

• Hydraulic System
  • Pump Flow
    114 Lpm

• Steering
  • Type
    Power track steering
  • System Pressure
    2 320 p.s.i. (160 bar)

• Loader General Dimension
  • Dump Height
    2740 mm
  • Load Over Height
    3320 mm
  • Hinge Pin Height
    3540 mm
  • Hinge Pin Forward Reach
    250 mm
  • Reach At Ground
    1420 mm
  • Dump Angle
    38 °
  • Bucket Capacity Std
    0.26 Cum
  • Rollback At Ground
    45 Degree

• Backhoe Loader Dimension
  • Maxd Dig Depth
    4770 mm
  • Reach Ground level to rear wheel center
    6720 mm
  • Reach at full height to slew center
    2740 mm
  • Max Working Height
    5970 mm
  • Max Load Over Height
    4180 mm
  • Bucket Breakout Force
    5959 kgf
  • dipper Tear Out Force
    3257 kgf
  • Bucket Rotation
    185 deg

• Overall Dimension & Weight
  • Max Operating Weight
    7510 Kg
  • Transport Length
    5900 mm
  • Wheelbase
    2170 mm
  • Minimum Ground Clearance
    510 mm
  • Height to top of cabin
    2870 mm
  • Width Over Bucket
    2350 MM
  • Track Width Rear
    1730 mm
  • Track Width Front
    1860 MM

• Service Capacities
  • Engine Oil
    15 Ltr
  • Rear Axle
    20 Ltr
  • transmission Oil Capacitysystem
    17.5 Ltr
  • Fuel Tank
    128 Ltr
  • Coolant
    20.5 Ltr
  • Hydraulic oil - System
    92 Ltr

• Axle
  • Rear
    Drive axle rigidly mounted, incorporates JCB Max-Trac torque proportioning differential, driven by short prop shaft from gear box
  • Front
    Steer axle, centrally pivoted, with oscillation angle of 16

• Brakes
  • Brakes service
    JCB ‘Q’ brakes, hydraulically actuated, dual line, self adjusting (compensated), oil immersed, multi-disc type on the rear axle, well protected from dirt, water etc. requiring no maintenance. Operated
  • Brakes Parking
    Hand operated, disc brakes on rear axle input disc

• Tyre
  • Standard tyre front
    9 x 16 - 16 PR
  • standard tyre rear
    16.9 x 28 - 12 PR

• Travel System
  • Forward
    6.5/10.5/19.8/36
  • Reverse
    6.5/10.5

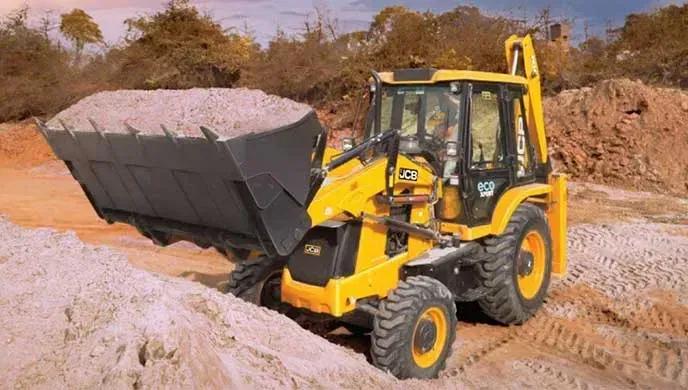

JCB 3DX Plus images
