The LiuGong 922E is an exceptional construction equipment model designed for demanding digging and demolition tasks. With its robust 137 HP engine, it offers the power and efficiency needed for a wide range of excavation projects. The 922E features a 1 cubic meter bucket capacity and can handle substantial lifting tasks with its optimal lifting capacity. Its substantial operating weight of 22,000 kg ensures stability and performance across diverse project requirements. The 420-liter fuel tank provides extended operational periods without frequent refueling, and the 448 Lpm hydraulic system delivers precise control for operators. Additionally, the 922E boasts a maximum digging depth of 6,562 mm, making it suitable for deeper excavations. This model also offers a cost-effective price range, allowing customers to make informed decisions.
Read more
Price on Request*
*Prices are subjected to change
EMI ₹ 20,362 For 5 YearsEMI Calculator
Key Features of LiuGong 922E
Specifications of LiuGong 922E
General
Sub Category
Excavator
Engine
Model
922E
Net Power ISO 9249
137 hp
Power ISO 14396
0
Engine Power
137 Hp
Stroke
120 mm
Displacement
5.9 L
Bore
102 mm
Hydraulic System
Main system Maximum Flow
448 Lpm
Weights Operating
Weight
22000 Kg
Operating Weight
22000 Kg
SERVICE REFILL CAPACITIES
Weights engine oil
25 L
Tank Capacity
420 L
weights hydraulic tank
210 L
Weights service refill
25 L
Weights Swing Drive
3.4 L
Weights hydraulic system including tank
330 L
Hydraulic System
330 L
Dimensions
Track Gauge
2390 mm
Ground Clearance
440 mm
Shipping height top of cab
3040 mm
Shipping Length
9570 mm
Tail Swing Radius
2780 mm
Counterweight Clearance
1070 mm
Track Length
4440 mm
Length to center of rollers
3650 mm
WORKING RANGES & FORCES
Bucket Capacity
1 Cum
Maximum Digging Depth
6562 MM
Maximum reach at ground level
9685 mm
Maximum cutting height
9970 mm
Maximum vertical wall digging depth
5080 mm
LiuGong 922E Brochure
Download the brochure in just one click to view LiuGong 922E price, specs and features of all the variants.

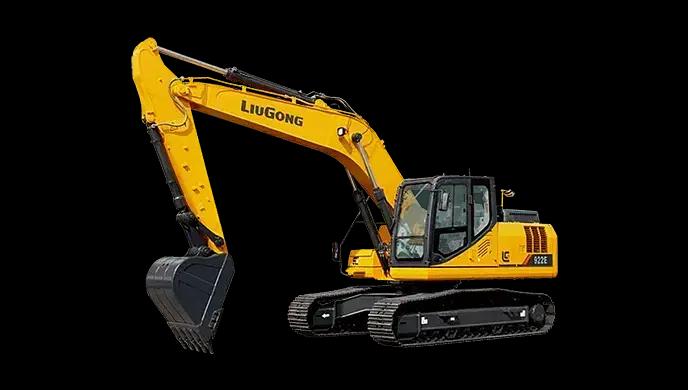

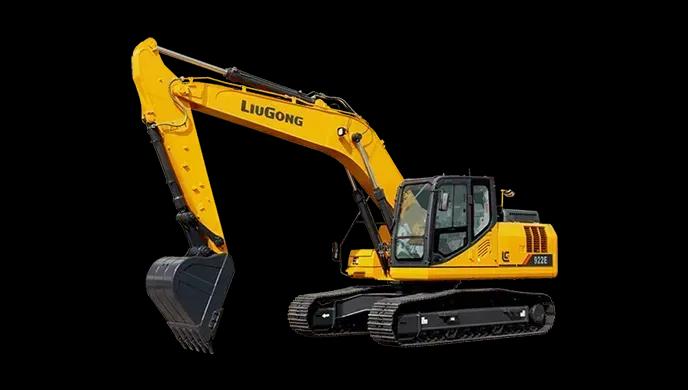

LiuGong 922E images
LiuGong 922E User Reviews & Rating
This product has not been reviewed yet. Your opinion could help others
Your questions, answered
Can not find what you are looking for?
Ask our experts
What is the engine power of the LiuGong 922E?
The LiuGong 922E is equipped with a powerful 137 HP engine.
What is the bucket capacity of the LiuGong 922E?
The LiuGong 922E has a bucket capacity of 1 cubic meter.
How much weight can the LiuGong 922E lift?
The LiuGong 922E has an optimal lifting capacity designed to efficiently handle heavy loads.
What is the operating weight of the LiuGong 922E?
The operating weight of the LiuGong 922E is 22,000 kg.
What is the fuel tank capacity of the LiuGong 922E?
The LiuGong 922E has a fuel tank capacity of 420 liters.
What is the hydraulic system capacity of the LiuGong 922E?
The hydraulic system of the LiuGong 922E has a maximum flow of 448 liters per minute.
What is the maximum digging depth of the LiuGong 922E?
The LiuGong 922E has a maximum digging depth of 6,562 mm.
Is the LiuGong 922E cost-effective?
Yes, the LiuGong 922E offers a cost-effective price range, allowing for informed purchasing decisions.
