ACE DI-305 NG

Key Features of ACE DI-305 NG

• No. Of Cylinder

  2
• Power

  26
• Capacity (cc)

  2044 CC
• PTO Power

  23.8
• Fuel Tank Capacity

  55 litre
• Lifting Capacity

  1200 Kg
• Wheel Drive

  2 WD

Specifications of ACE DI-305 NG

• Engine
  • No. Of Cylinder
    2
  • Power
    26
  • Capacity (cc)
    2044 CC
  • Engine Rated RPM
    1800 RPM
  • Air Filter
    Dry Type
  • Cooling Type
    Water Cooled

• Power Take Off (PTO) & Steering
  • Steering Column
    Single Drop Arm
  • PTO Power
    23.8
  • PTO RPM
    540

• Transmission
  • Alternator
    12 V 42 Amp
  • Gear Box
    8 Forward + 2 Reverse
  • Clutch Type
    Single Clutch
  • Battery
    12 V 75 Ah
  • Forward Speed
    2.29 - 27.78 kmph
  • Reverse Speed
    2.86 - 11.31 kmph

• Hydraulics & Brakes
  • 3 point Linkage
    ADDC
  • Tuning Radius with Brakes
    2940 MM
  • Lifting Capacity
    1200 Kg
  • Brakes
    Dry Disc

• Dimension & Capacity
  • Fuel Tank Capacity
    55 litre
  • Total Weight
    1780 KG
  • Wheel Base
    1855 MM
  • Overall Length
    3550 MM
  • Overall Width
    1700 MM
  • Ground Clearance
    395 MM

• Wheels & Tyres
  • Front Tyre Size
    6.00 x 16
  • Wheel Drive
    2 WD
  • Read Tyre Size
    12.4 x 28

• Others
  • Warranty
    2000 hours/ 2 Year

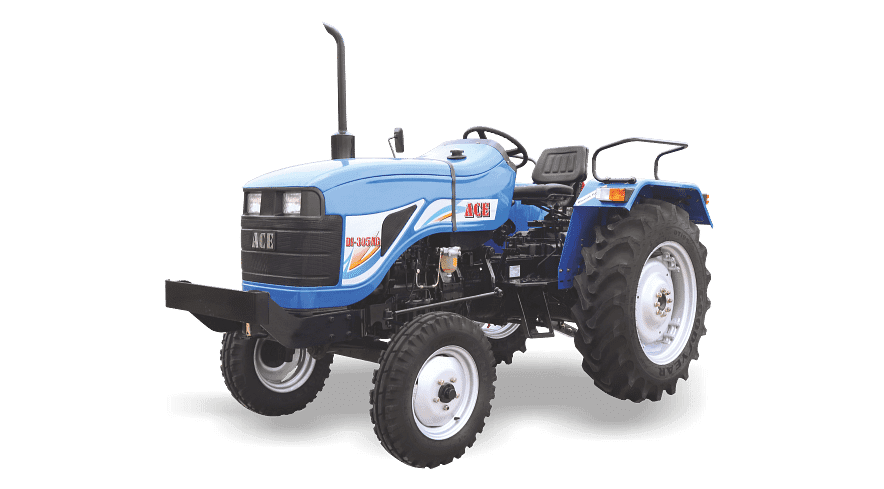

ACE DI-305 NG images
