ACE DI 450 NG 4WD

Key Features of ACE DI 450 NG 4WD

• No. Of Cylinder

  3
• Power

  45
• Capacity (cc)

  2858 CC
• PTO Power

  38.3
• Fuel Tank Capacity

  55 litre
• Lifting Capacity

  1200 / 1800 Kg
• Wheel Drive

  4 WD

Specifications of ACE DI 450 NG 4WD

• Engine
  • No. Of Cylinder
    3
  • Power
    45
  • Capacity (cc)
    2858 CC
  • Engine Rated RPM
    2000 RPM
  • Air Filter
    Dry Air Cleaner
  • Cooling Type
    Water Cooled

• Power Take Off (PTO) & Steering
  • Steering Column
    Single Drop Arm
  • PTO RPM
    540 RPM
  • PTO Power
    38.3

• Transmission
  • Reverse Speed
    3.51 - 13.87 kmph
  • Clutch Type
    Dual Clutch
  • Gear Box
    8 Forward + 2 Reverse
  • Battery
    12 V 88 Ah
  • Forward Speed
    2.51 -31.91 kmph
  • Alternator
    12 V 42 Amp

• Hydraulics & Brakes
  • Brakes
    Oil Immersed Brake
  • Tuning Radius with Brakes
    4300 MM
  • Lifting Capacity
    1200 / 1800 Kg
  • 3 point Linkage
    ADDC, Live Hydraulics with Mix Mode

• Dimension & Capacity
  • Fuel Tank Capacity
    55 litre
  • Ground Clearance
    425 MM
  • Total Weight
    1950 KG
  • Wheel Base
    1960 MM
  • Overall Length
    3660 MM
  • Overall Width
    1740 MM

• Wheels & Tyres
  • Wheel Drive
    4 WD
  • Front Tyre Size
    6.00 x 16
  • Read Tyre Size
    13.6 X 28

• Others
  • Warranty
    2000 Hours / 2 Year

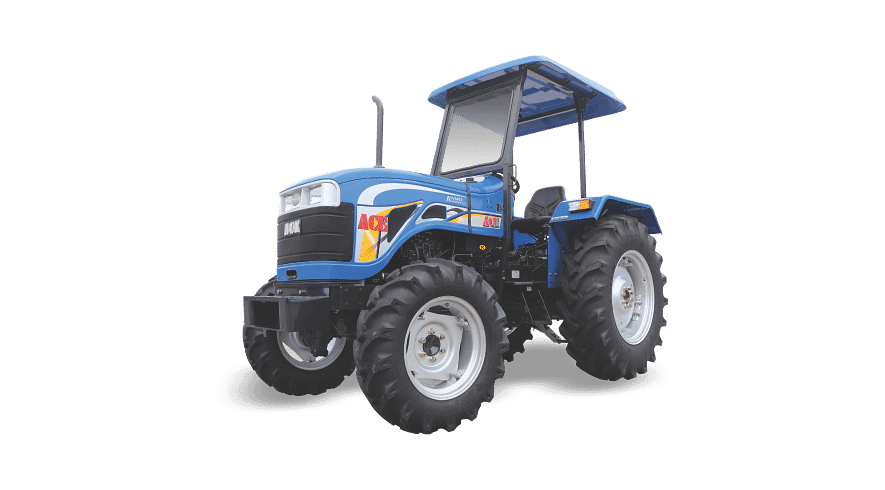

ACE DI 450 NG 4WD images
