ACE DI 7575

Key Features of ACE DI 7575

• No. Of Cylinder

  4
• Power

  75
• Capacity (cc)

  4088 CC
• PTO Power

  64
• Fuel Tank Capacity

  65 litre
• Lifting Capacity

  2000 Kg
• Wheel Drive

  2 WD

Specifications of ACE DI 7575

• Engine
  • Capacity (cc)
    4088 CC
  • Engine Rated RPM
    2200 RPM
  • Power
    75
  • Cooling Type
    Turbocharged
  • Air Filter
    Dry Air Cleaner with Clogging Sensor
  • Torque
    305 @1450
  • No. Of Cylinder
    4

• Power Take Off (PTO) & Steering
  • PTO RPM
    540
  • PTO Power
    64

• Transmission
  • Clutch Type
    Dual Clutch
  • Alternator
    12 V 42 Amp
  • Battery
    12 V 110 Ah
  • Gear Box
    8 Forward + 2 Reverse
  • Forward Speed
    3.01 - 36.34 kmph

• Hydraulics & Brakes
  • Brakes
    Oil immersed Brakes
  • Tuning Radius with Brakes
    4000 MM
  • Lifting Capacity
    2000 Kg
  • 3 point Linkage
    ADDC CAT II

• Dimension & Capacity
  • Fuel Tank Capacity
    65 litre
  • Overall Width
    1950 MM
  • Wheel Base
    2130 MM
  • Overall Length
    3845 MM
  • Ground Clearance
    465 MM
  • Total Weight
    2400 KG

• Wheels & Tyres
  • Wheel Drive
    2 WD
  • Front Tyre Size
    7.50 x 16
  • Read Tyre Size
    16.9 x 30

• Others
  • Warranty
    2000 Hours / 2 Year

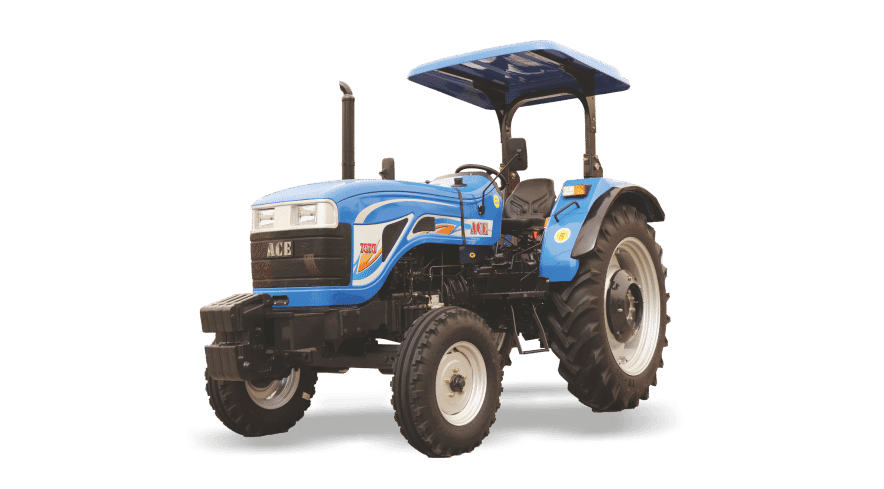

ACE DI 7575 images
