ACE DI-854 NG

Key Features of ACE DI-854 NG

• No. Of Cylinder

  3
• Power

  32
• Capacity (cc)

  2858 CC
• PTO Power

  27.2
• Fuel Tank Capacity

  57 litre
• Lifting Capacity

  1200 Kg
• Wheel Drive

  2 WD

Specifications of ACE DI-854 NG

• Engine
  • Air Filter
    Dry Air Cleaner With Cooling Sensor
  • Engine Rated RPM
    1800 RPM
  • No. Of Cylinder
    3
  • Capacity (cc)
    2858 CC
  • Cooling Type
    Water Cooled
  • Torque
    155
  • Power
    32

• Power Take Off (PTO) & Steering
  • PTO RPM
    540
  • PTO Power
    27.2

• Transmission
  • Battery
    12 V 88 Ah
  • Gear Box
    8 Forward + 2 Reverse
  • Alternator
    12 V 35 Amp
  • Clutch Type
    Dry Type Single
  • Forward Speed
    2.29 – 27.75 kmph
  • Reverse Speed
    2.86 – 11.31 kmph

• Hydraulics & Brakes
  • 3 point Linkage
    ADDC
  • Lifting Capacity
    1200 Kg
  • Tuning Radius with Brakes
    3020 MM
  • Brakes
    DRY DISC Brakes/ OIL IMMERSED Brakes(OPTIONAL)

• Dimension & Capacity
  • Overall Width
    1700 MM
  • Ground Clearance
    395 MM
  • Fuel Tank Capacity
    57 litre
  • Wheel Base
    1960 MM
  • Total Weight
    1920 KG
  • Overall Length
    3650 MM

• Wheels & Tyres
  • Wheel Drive
    2 WD
  • Front Tyre Size
    6.00X16
  • Read Tyre Size
    12.4X28

• Others
  • Warranty
    2000 Hours / 2 Year

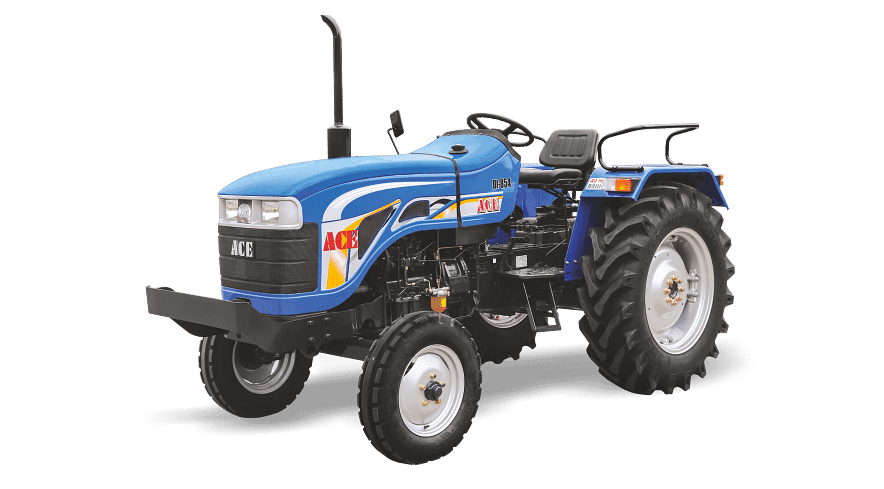

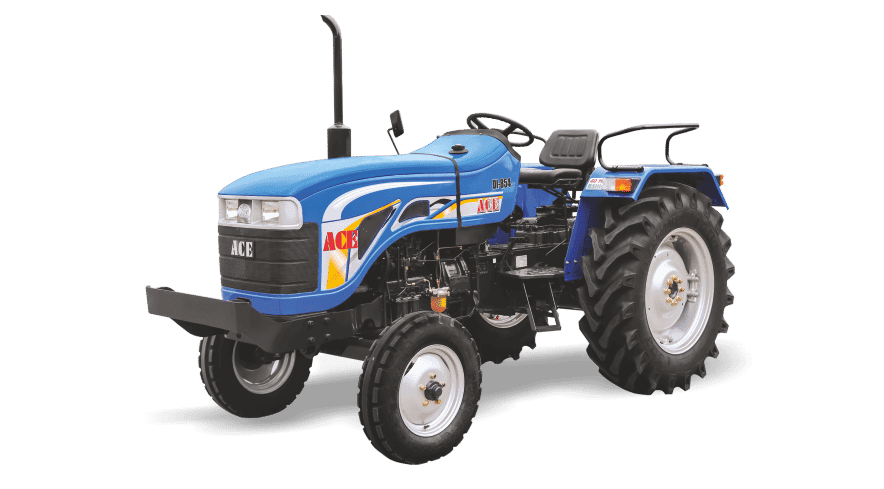

ACE DI-854 NG images
