ACE Veer 20

Key Features of ACE Veer 20

• No. Of Cylinder

  1
• Power

  20
• Capacity (cc)

  863 CC
• PTO Power

  17.2
• Lifting Capacity

  600 Kg
• Wheel Drive

  2 WD

Specifications of ACE Veer 20

• Engine
  • No. Of Cylinder
    1
  • Power
    20
  • Capacity (cc)
    863 CC
  • Cooling Type
    Water Cooled
  • Air Filter
    Oil Bath Air-cleaner for Less Serviceability

• Power Take Off (PTO) & Steering
  • PTO Power
    17.2
  • PTO RPM
    540

• Transmission
  • Clutch Type
    Dry Friction Plate
  • Gear Box
    6 Forward + 3 Reverse
  • Battery
    12 V 50 AH
  • Alternator
    12 V 43 Amp
  • Forward Speed
    28.0 kmph
  • Reverse Speed
    6.31 kmph

• Hydraulics & Brakes
  • Brakes
    Disc Brake
  • Lifting Capacity
    600 Kg
  • 3 point Linkage
    PCDC

• Dimension & Capacity
  • Total Weight
    940 KG
  • Wheel Base
    1490 MM
  • Overall Length
    2550 MM
  • Overall Width
    1220 MM
  • Ground Clearance
    265 MM

• Wheels & Tyres
  • Wheel Drive
    2 WD
  • Front Tyre Size
    5.25 X 14
  • Read Tyre Size
    8 X 18

• Others
  • Warranty
    2000 Hour / 2 Year

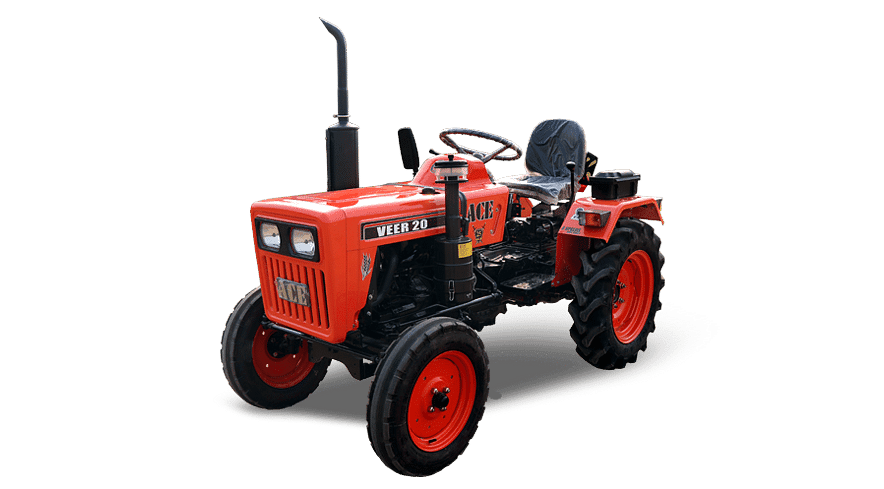

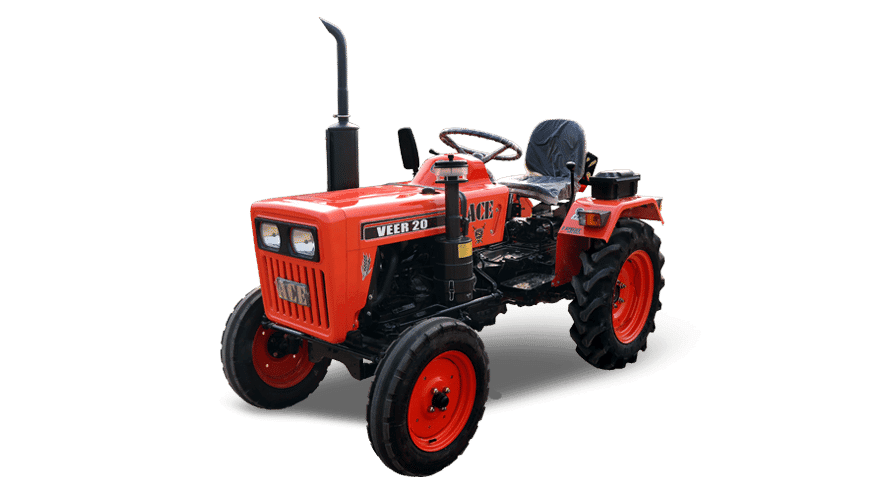

ACE Veer 20 images
