Force BALWAN 500

Key Features of Force BALWAN 500

• No. Of Cylinder

  4
• Power

  50
• Capacity (cc)

  2596 CC
• PTO Power

  43
• Fuel Tank Capacity

  60 litre
• Lifting Capacity

  1350-1450 Kg
• Wheel Drive

  2 WD

Specifications of Force BALWAN 500

• Engine
  • No. Of Cylinder
    4
  • Power
    50
  • Capacity (cc)
    2596 CC
  • Engine Rated RPM
    2200 RPM
  • Cooling Type
    Water Cooled
  • Air Filter
    Oil bath type

• Power Take Off (PTO) & Steering
  • PTO Power
    43
  • PTO RPM
    540 / 1000

• Transmission
  • Clutch Type
    Dry, dual clutch Plate
  • Gear Box
    8 Forward + 4 Reverse
  • Battery
    12 V 75 Ah
  • Alternator
    14 V 23 Amps

• Hydraulics & Brakes
  • Brakes
    Fully Oil Immersed Multiplate Sealed Disc Brakes
  • Tuning Radius with Brakes
    3000 MM
  • Lifting Capacity
    1350-1450 Kg
  • 3 point Linkage
    ADDC,Cat- II

• Dimension & Capacity
  • Fuel Tank Capacity
    60 litre
  • Total Weight
    1920 KG
  • Wheel Base
    1970 MM
  • Overall Length
    3320 MM
  • Overall Width
    1690 MM
  • Ground Clearance
    365 MM

• Wheels & Tyres
  • Wheel Drive
    2 WD
  • Front Tyre Size
    6.00 x 16
  • Read Tyre Size
    14.9 x 28

• Others
  • Warranty
    3 Year

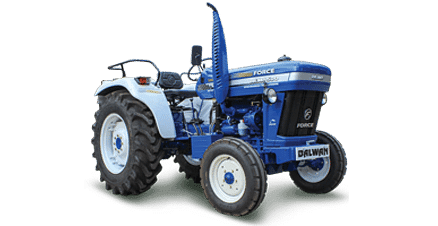

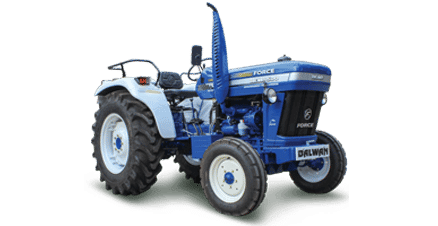

Force BALWAN 500 images
