Indo Farm 3048 DI

Key Features of Indo Farm 3048 DI

• No. Of Cylinder

  3
• Power

  50
• PTO Power

  43
• Lifting Capacity

  1800 Kg
• Wheel Drive

  4 WD

Specifications of Indo Farm 3048 DI

• Engine
  • Air Filter
    Dry Type
  • Fuel Pump
    Inline
  • Power
    50
  • Engine Rated RPM
    2200 RPM
  • Cooling Type
    Water Cooled
  • No. Of Cylinder
    3

• Power Take Off (PTO) & Steering
  • PTO RPM
    540
  • PTO Power
    43

• Transmission
  • Gear Box
    8 Forward + 2 Reverse
  • Clutch Type
    Single Clutch/Dual Clutch , Main Clutch Disc Cerametallic
  • Battery
    12 Volts-75 Ah-Battery,
  • Alternator
    Self Starter Motor & Alternator
  • Forward Speed
    2.12 - 31.38 kmph
  • Reverse Speed
    2.81 - 11.27 kmph

• Hydraulics & Brakes
  • 3 point Linkage
    ADDC,Cat- II
  • Lifting Capacity
    1800 Kg
  • Brakes
    Oil Immersed Multiple disc / Dry double disc (Optional)
  • Tuning Radius with Brakes
    4.0 MM

• Dimension & Capacity
  • Overall Length
    3760 MM
  • Overall Width
    1850 MM
  • Ground Clearance
    380 MM
  • Total Weight
    2370 KG
  • Wheel Base
    1940 MM

• Wheels & Tyres
  • Front Tyre Size
    8.00 x 18
  • Read Tyre Size
    14.9 x 28
  • Wheel Drive
    4 WD

• Others
  • Warranty
    2000 Hour / 2 Year

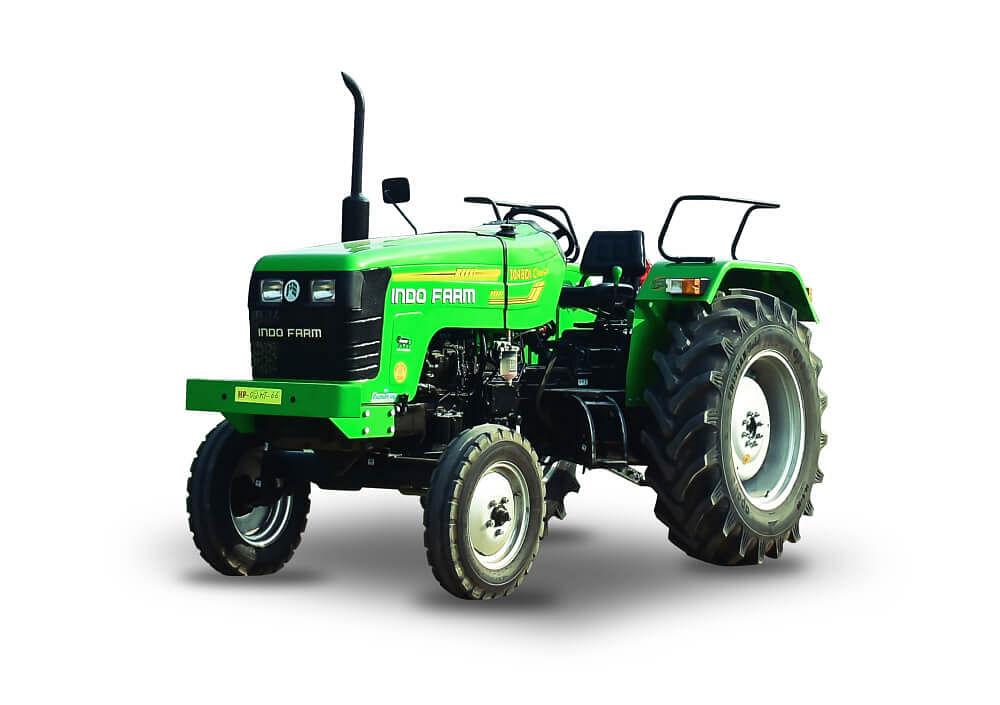

Indo Farm 3048 DI images
