John Deere 5050 E

Key Features of John Deere 5050 E

• No. Of Cylinder

  3
• Power

  50
• PTO Power

  42.5
• Fuel Tank Capacity

  68 litre
• Lifting Capacity

  1800 Kg
• Wheel Drive

  2 WD

Specifications of John Deere 5050 E

• Engine
  • Power
    50
  • Air Filter
    Dry Type, Dual Element
  • Engine Rated RPM
    2400 RPM
  • No. Of Cylinder
    3
  • Cooling Type
    Coolant cool with overflow reservoir
  • Fuel Pump
    Inline FIP

• Power Take Off (PTO) & Steering
  • PTO Power
    42.5
  • PTO RPM
    540@ 2376 ERPM

• Transmission
  • Gear Box
    9 Forward + 3 Reverse
  • Clutch Type
    Dual Clutch
  • Battery
    12 V 88 Ah
  • Forward Speed
    2.7 - 30.1 kmph
  • Reverse Speed
    3.7 - 23.2 kmph
  • Alternator
    12 V 40 Amp

• Hydraulics & Brakes
  • Lifting Capacity
    1800 Kg
  • 3 point Linkage
    AUTOMATIC DEPTH & DRAFT CONTROL
  • Brakes
    Oil Immersed Disc Brakes
  • Tuning Radius with Brakes
    3181 MM

• Dimension & Capacity
  • Ground Clearance
    440 MM
  • Wheel Base
    2050 MM
  • Total Weight
    2105 KG
  • Overall Length
    3540 MM
  • Overall Width
    1820 MM
  • Fuel Tank Capacity
    68 litre

• Wheels & Tyres
  • Front Tyre Size
    6.00 x 16 / 7.50 x 16
  • Read Tyre Size
    14.9 x 28 / 16.9 x 28
  • Wheel Drive
    2 WD

• Others
  • Warranty
    5000 Hours/ 5 Year
  • Accessories
    Ballast Weiht, Canopy, Tow Hook, Drawbar, Wagon Hitch

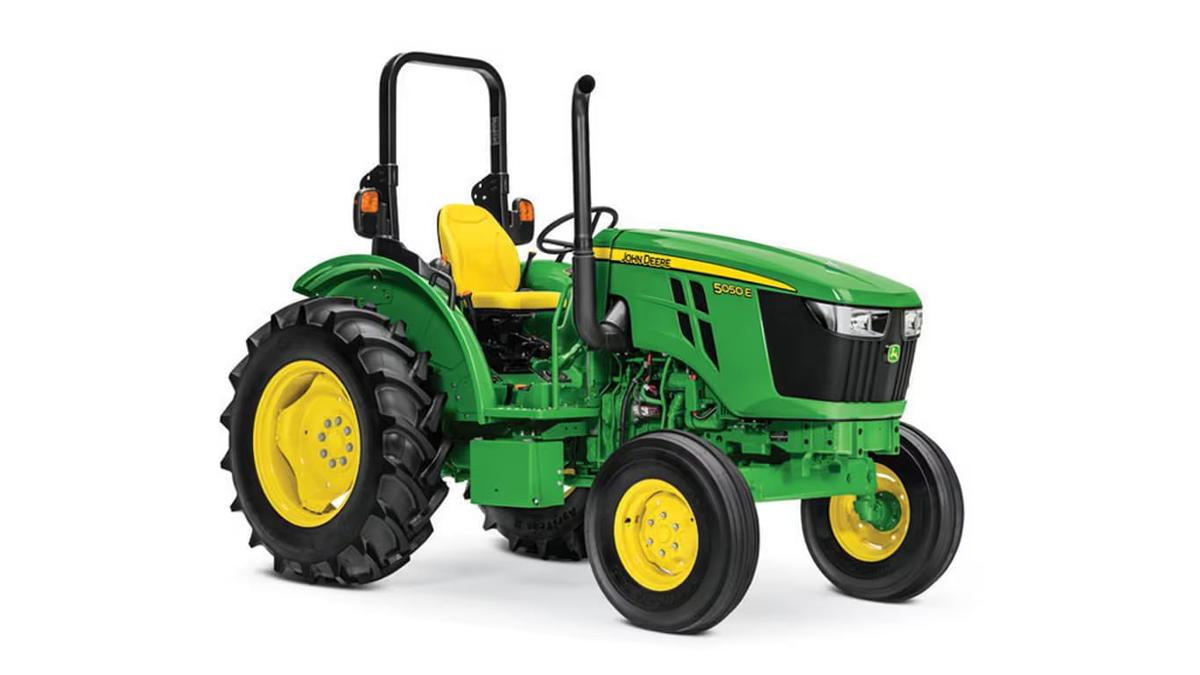

John Deere 5050 E images
