Kartar 5036 4wd

Key Features of Kartar 5036 4wd

• No. Of Cylinder

  3
• Power

  50
• Capacity (cc)

  3120 CC
• PTO Power

  43.4
• Fuel Tank Capacity

  55 litre
• Lifting Capacity

  1400
• Wheel Drive

  4 WD

Specifications of Kartar 5036 4wd

• Engine
  • Capacity (cc)
    3120 CC
  • No. Of Cylinder
    3
  • Engine Rated RPM
    2200 RPM
  • Air Filter
    Dry Type
  • Cooling Type
    Water Cooled
  • Power
    50
  • Torque
    188

• Power Take Off (PTO) & Steering
  • PTO Power
    43.4
  • PTO RPM
    540 RPM @ 1728 ERPM, 540E @ 1251 ERPM

• Transmission
  • Gear Box
    8 Forward + 8 Reverse
  • Alternator
    12 V 36 Amp
  • Clutch Type
    Dual Clutch
  • Battery
    12 V 88 Ah
  • Forward Speed
    32.66 kmph
  • Reverse Speed
    32.33 kmph

• Hydraulics & Brakes
  • Brakes
    Oil immersed Brakes
  • 3 point Linkage
    ADDC
  • Lifting Capacity
    1400

• Dimension & Capacity
  • Wheel Base
    2150 MM
  • Fuel Tank Capacity
    55 litre
  • Ground Clearance
    420 MM
  • Overall Length
    3765 MM
  • Total Weight
    2080 KG
  • Overall Width
    1868 MM

• Wheels & Tyres
  • Read Tyre Size
    14.9 x 28
  • Wheel Drive
    4 WD
  • Front Tyre Size
    8.3x20

• Others
  • Warranty
    2000 Hours / 2 Year

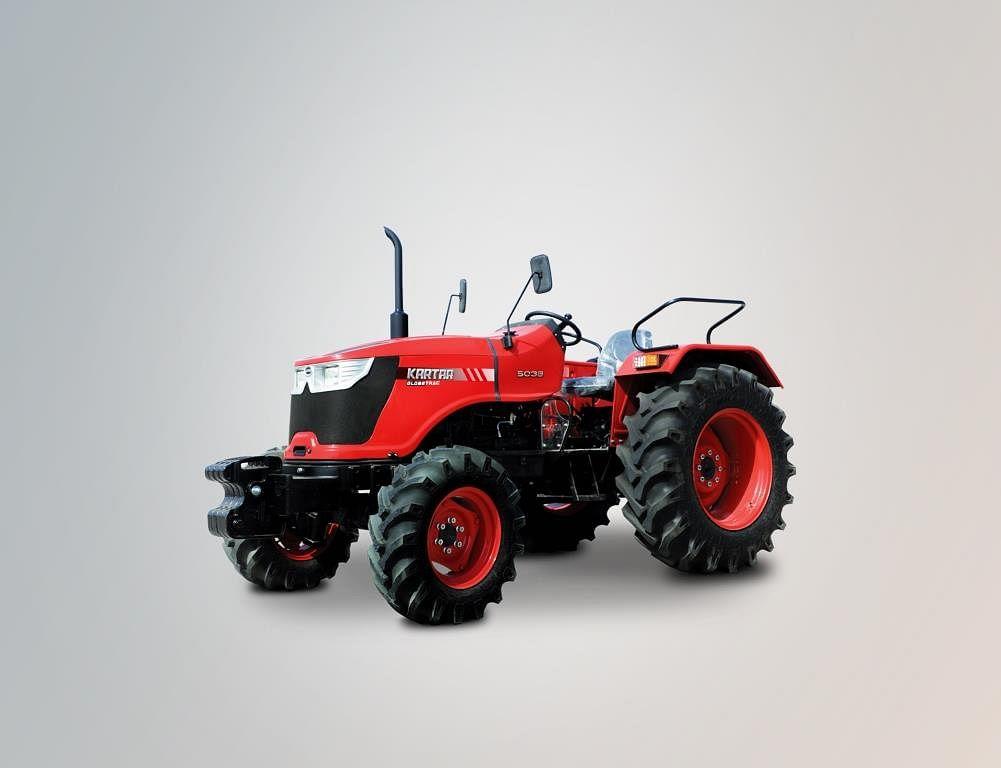

Kartar 5036 4wd images
