Kartar 5136 Plus CR

Key Features of Kartar 5136 Plus CR

• No. Of Cylinder

  3
• Power

  50
• Capacity (cc)

  3120 CC
• Lifting Capacity

  1800 Kg
• Wheel Drive

  2 WD

Specifications of Kartar 5136 Plus CR

• Engine
  • Capacity (cc)
    3120 CC
  • Cooling Type
    Water Cooled
  • No. Of Cylinder
    3
  • Air Filter
    Dry Type
  • Power
    50
  • Engine Rated RPM
    2200 RPM

• Power Take Off (PTO) & Steering
  • PTO RPM
    540

• Transmission
  • Battery
    12 V 88 Ah
  • Gear Box
    16 Forward + 4 Reverse
  • Clutch Type
    280 mm Dry Type; Dual
  • Forward Speed
    2.63-33.27 kmph
  • Reverse Speed
    3.63-14.51 kmph

• Hydraulics & Brakes
  • Lifting Capacity
    1800 Kg
  • 3 point Linkage
    ADDC
  • Brakes
    Oil Immersed Brake

• Dimension & Capacity
  • Total Weight
    2160 KG

• Wheels & Tyres
  • Wheel Drive
    2 WD

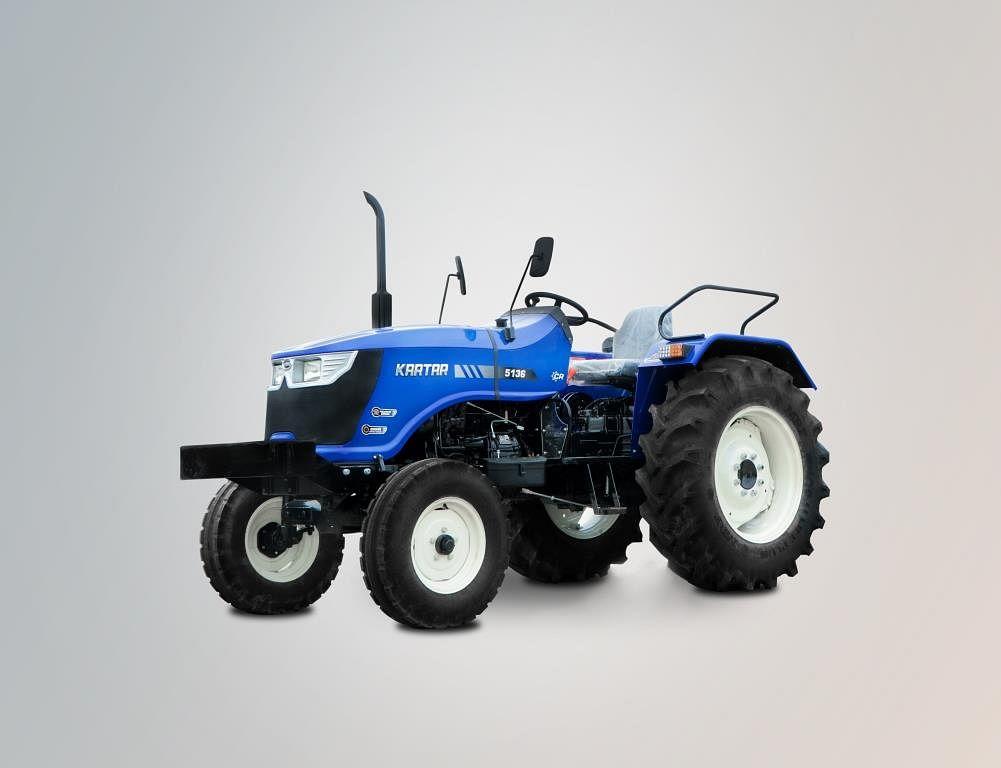

Kartar 5136 Plus CR images
