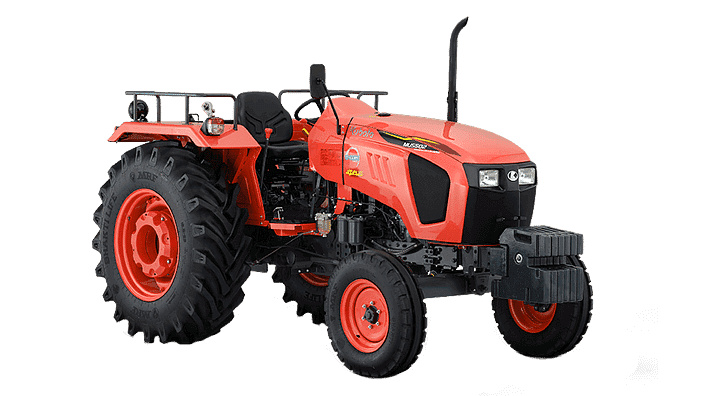

Kubota MU 5502 2wd

Key Features of Kubota MU 5502 2wd

• No. Of Cylinder

  4
• Power

  50
• Capacity (cc)

  2434 CC
• PTO Power

  47
• Fuel Tank Capacity

  65 litre
• Lifting Capacity

  1800 - 2100 kg
• Wheel Drive

  2 WD

Specifications of Kubota MU 5502 2wd

• Engine
  • Power
    50
  • Capacity (cc)
    2434 CC
  • No. Of Cylinder
    4
  • Cooling Type
    Liquid Cooled
  • Engine Rated RPM
    2200 RPM
  • Fuel Pump
    29.2 lpm / 36.5 lpm (T)
  • Torque
    35 %
  • Air Filter
    Dry Type, Dual Element

• Power Take Off (PTO) & Steering
  • PTO Power
    47
  • PTO RPM
    STD : 540 @2160 ERPM ECO : 750 @2200 ERPM

• Transmission
  • Clutch Type
    Double Clutch
  • Gear Box
    12 Forward + 4 Reverse
  • Forward Speed
    1.8- 30.8 kmph
  • Reverse Speed
    5.1 - 14 kmph
  • Alternator
    55 AMP
  • Battery
    12 V

• Hydraulics & Brakes
  • 3 point Linkage
    Draft, position and response control
  • Lifting Capacity
    1800 - 2100 kg
  • Tuning Radius with Brakes
    2.9 MM
  • Brakes
    Oil Immersed Multi Disc Brakes

• Dimension & Capacity
  • Overall Length
    3720 MM
  • Ground Clearance
    420 MM
  • Wheel Base
    2100 MM
  • Total Weight
    2310 KG
  • Fuel Tank Capacity
    65 litre
  • Overall Width
    1965 MM

• Wheels & Tyres
  • Wheel Drive
    2 WD
  • Read Tyre Size
    16.9 X 28
  • Front Tyre Size
    7.5 x 16 / 6.5 x 20

• Others
  • Warranty
    5000 Hours / 5 Year
