Kubota MU4501 2WD

Key Features of Kubota MU4501 2WD

• No. Of Cylinder

  4
• Power

  45
• Capacity (cc)

  2434 CC
• PTO Power

  38.3
• Fuel Tank Capacity

  60 litre
• Lifting Capacity

  1640 Kg
• Wheel Drive

  2 WD

Specifications of Kubota MU4501 2WD

• Engine
  • No. Of Cylinder
    4
  • Power
    45
  • Capacity (cc)
    2434 CC
  • Engine Rated RPM
    2500 RPM
  • Cooling Type
    Liquid Cooled
  • Air Filter
    Dry type with dual element
  • Fuel Pump
    Inline Pump

• Power Take Off (PTO) & Steering
  • PTO Power
    38.3
  • PTO RPM
    STD : 540 @2484 ERPM ECO : 750 @2481 ERPM

• Transmission
  • Clutch Type
    Double Clutch
  • Gear Box
    8 Forward + 4 Reverse
  • Battery
    12 VOLT
  • Alternator
    40 Amp
  • Forward Speed
    3.0 - 30.8 kmph
  • Reverse Speed
    3.9 - 13.8 kmph

• Hydraulics & Brakes
  • Brakes
    Oil Immersed Disc Brake
  • Tuning Radius with Brakes
    2800 MM
  • Lifting Capacity
    1640 Kg
  • 3 point Linkage
    Draft, position and response control

• Dimension & Capacity
  • Fuel Tank Capacity
    60 litre
  • Total Weight
    1850 KG
  • Wheel Base
    1990 MM
  • Overall Length
    3100 MM
  • Overall Width
    1865 MM
  • Ground Clearance
    405 MM

• Wheels & Tyres
  • Wheel Drive
    2 WD
  • Front Tyre Size
    6.00 X 16 / 7.5 x 16
  • Read Tyre Size
    13.6 x 28 / 14.9 x 28

• Others
  • Warranty
    5000 Hours / 5 Year
  • Accessories
    Tool, Toplink, Canopy, Hook, Bumper, Drawbar

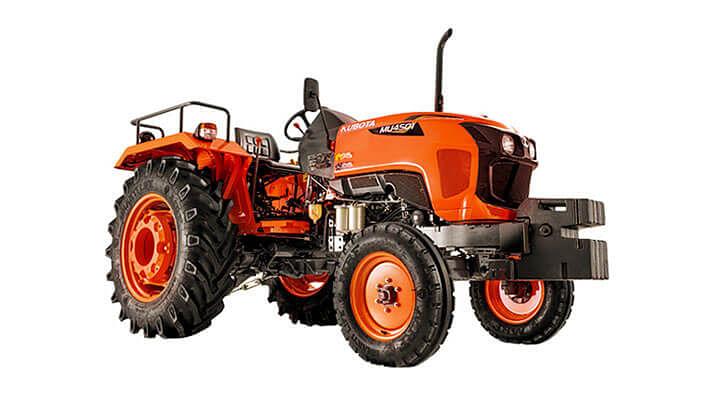

Kubota MU4501 2WD images
