Kubota MU4501 4WD

Key Features of Kubota MU4501 4WD

• No. Of Cylinder

  4
• Power

  45
• Capacity (cc)

  2434 CC
• PTO Power

  38.3
• Fuel Tank Capacity

  60 litre
• Lifting Capacity

  1640 Kg
• Wheel Drive

  4 WD

Specifications of Kubota MU4501 4WD

• Engine
  • Engine Rated RPM
    2500 RPM
  • Power
    45
  • Air Filter
    Dry type with dual element
  • Cooling Type
    Liquid Cooled
  • Fuel Pump
    Inline
  • No. Of Cylinder
    4
  • Capacity (cc)
    2434 CC

• Power Take Off (PTO) & Steering
  • PTO Power
    38.3
  • PTO RPM
    STD : 540 @2484 ERPM, ECO : 750 @2481 ERPM

• Transmission
  • Gear Box
    8 Forward + 4 Reverse
  • Alternator
    40 Amp
  • Forward Speed
    3.0 - 30.8 kmph
  • Reverse Speed
    3.9 - 13.8 kmph
  • Clutch Type
    Double Cutch
  • Battery
    12 VOLT

• Hydraulics & Brakes
  • Brakes
    Oil Immersed Disc Brakes
  • 3 point Linkage
    Draft, position and response control
  • Lifting Capacity
    1640 Kg
  • Tuning Radius with Brakes
    2900 MM

• Dimension & Capacity
  • Ground Clearance
    365 MM
  • Fuel Tank Capacity
    60 litre
  • Overall Width
    1870 MM
  • Wheel Base
    1990 MM
  • Total Weight
    1970 KG
  • Overall Length
    3110 MM

• Wheels & Tyres
  • Wheel Drive
    4 WD
  • Read Tyre Size
    13.6 X 28
  • Front Tyre Size
    8.00 x 18

• Others
  • Accessories
    Tool, Toplink, Canopy, Hook, Bumper, Drawbar
  • Warranty
    5000 Hours / 5 Year

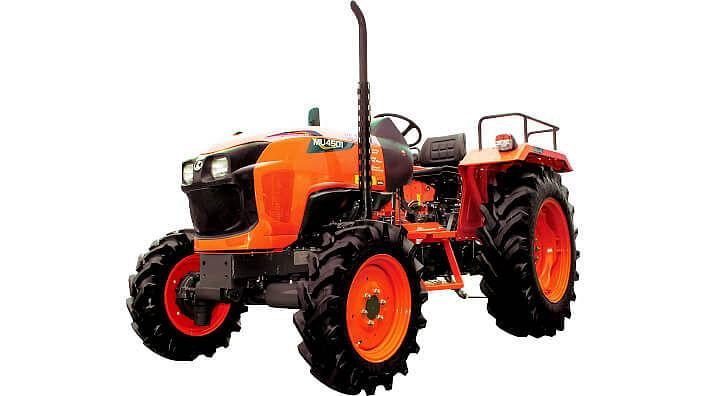

Kubota MU4501 4WD images
