Mahindra 575 DI

Key Features of Mahindra 575 DI

• No. Of Cylinder

  4
• Power

  45
• Capacity (cc)

  2730 CC
• PTO Power

  39.8
• Fuel Tank Capacity

  47.5 litre
• Lifting Capacity

  1600 kg
• Wheel Drive

  2 WD

Specifications of Mahindra 575 DI

• Engine
  • No. Of Cylinder
    4
  • Power
    45
  • Capacity (cc)
    2730 CC
  • Engine Rated RPM
    1900 RPM
  • Cooling Type
    Water Cooled
  • Air Filter
    Oil bath type
  • Fuel Pump
    Inline

• Power Take Off (PTO) & Steering
  • PTO Power
    39.8
  • PTO RPM
    540
  • Steering Column
    Single Drop Arm

• Transmission
  • Clutch Type
    Dry Type Single / Dual clutch
  • Gear Box
    8 Forward + 2 Reverse
  • Battery
    12 V 75 Ah
  • Alternator
    12 V 36 A
  • Forward Speed
    29.5 kmph
  • Reverse Speed
    12.8 kmph

• Hydraulics & Brakes
  • Brakes
    Dry Disc Brakes/ Oil Immersed (Optional)
  • Lifting Capacity
    1600 kg
  • 3 point Linkage
    CAT-II with External Chain

• Dimension & Capacity
  • Fuel Tank Capacity
    47.5 litre
  • Total Weight
    1860 KG
  • Wheel Base
    1945 MM
  • Overall Length
    3570 MM
  • Overall Width
    1980 MM
  • Ground Clearance
    350 MM

• Wheels & Tyres
  • Wheel Drive
    2 WD
  • Front Tyre Size
    6.00 x 16
  • Read Tyre Size
    13.6 x 28 / 14.9 x 28

• Others
  • Warranty
    2000 Hours Or 2 Year
  • Accessories
    Tools, Top Link

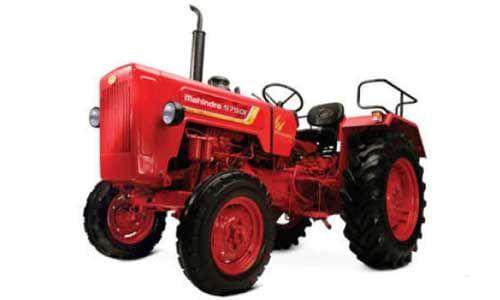

Mahindra 575 DI images
