Swaraj 744 FE

Key Features of Swaraj 744 FE

• No. Of Cylinder

  3
• Power

  48
• Capacity (cc)

  3136 CC
• PTO Power

  41.8
• Fuel Tank Capacity

  60 litre
• Lifting Capacity

  1700 kg
• Wheel Drive

  2 WD

Specifications of Swaraj 744 FE

• Engine
  • No. Of Cylinder
    3
  • Power
    48
  • Capacity (cc)
    3136 CC
  • Engine Rated RPM
    2000 RPM
  • Cooling Type
    Water Cooled
  • Air Filter
    3- Stage Oil Bath Type

• Power Take Off (PTO) & Steering
  • PTO Power
    41.8
  • PTO RPM
    540 / 1000
  • Steering Column
    Single Drop Arm

• Transmission
  • Clutch Type
    Single / Dual clutch
  • Gear Box
    8 Forward + 2 Reverse
  • Battery
    12 V 88 Ah
  • Alternator
    starter motor
  • Forward Speed
    3.1 - 29.2 kmph
  • Reverse Speed
    4.3 - 14.3 kmph

• Hydraulics & Brakes
  • Brakes
    Dry Disc type Brakes / Oil Immersed Brakes (Optional )
  • Lifting Capacity
    1700 kg
  • 3 point Linkage
    Automatic Depth & Draft Control, I & II type implement pins.

• Dimension & Capacity
  • Fuel Tank Capacity
    60 litre
  • Total Weight
    1990 KG
  • Wheel Base
    1950 MM
  • Overall Length
    3440 MM
  • Overall Width
    1730 MM
  • Ground Clearance
    400 MM

• Wheels & Tyres
  • Wheel Drive
    2 WD
  • Front Tyre Size
    6.00 x 16 / 7.50 x 16
  • Read Tyre Size
    13.6 x 28 / 14.9 x 28

• Others
  • Warranty
    6000 Hours or 6 Year
  • Accessories
    TOOLS, BUMPER, Ballast Weight, TOP LINK, CANOPY, HITCH, DRAWBAR

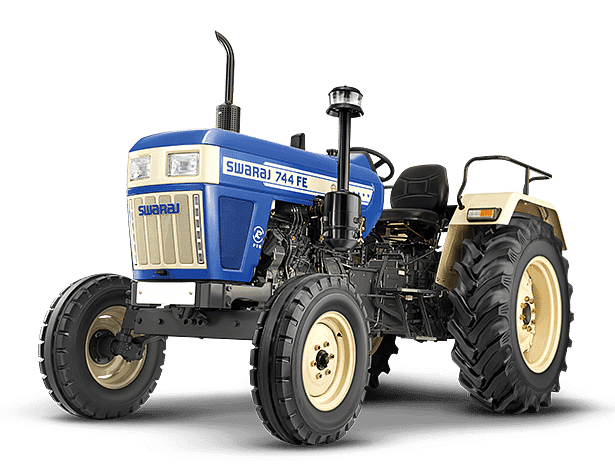

Swaraj 744 FE images
