ACE DI-550 NG

Key Features of ACE DI-550 NG

• No. Of Cylinder

  3
• Power

  50
• Capacity (cc)

  3065 CC
• PTO Power

  42.5
• Fuel Tank Capacity

  55 litre
• Lifting Capacity

  1200 / 1800 Kg
• Wheel Drive

  2 WD

Specifications of ACE DI-550 NG

• Engine
  • Capacity (cc)
    3065 CC
  • Cooling Type
    Water Cooled
  • No. Of Cylinder
    3
  • Air Filter
    Dry Air Cleaner
  • Power
    50
  • Engine Rated RPM
    2100 RPM

• Power Take Off (PTO) & Steering
  • PTO Power
    42.5
  • Steering Column
    Single Drop Arm
  • PTO RPM
    540 & 1000

• Transmission
  • Gear Box
    8 Forward + 2 Reverse
  • Forward Speed
    2.68 – 35.16 kmph
  • Reverse Speed
    3.76 – 14.85 kmph
  • Clutch Type
    Single /Dual Clutch
  • Battery
    88AH-12V
  • Alternator
    12V-35

• Hydraulics & Brakes
  • Brakes
    Dry Disc Brakes / OIB
  • 3 point Linkage
    Draft, position and response control
  • Lifting Capacity
    1200 / 1800 Kg
  • Tuning Radius with Brakes
    3380 MM

• Dimension & Capacity
  • Fuel Tank Capacity
    55 litre
  • Wheel Base
    1960 MM
  • Overall Length
    3660 MM
  • Ground Clearance
    430 MM
  • Overall Width
    1830 MM
  • Total Weight
    2110 KG

• Wheels & Tyres
  • Wheel Drive
    2 WD
  • Front Tyre Size
    7.50X16
  • Read Tyre Size
    14.9X28

• Others
  • Warranty
    2000 Hours / 2 Year

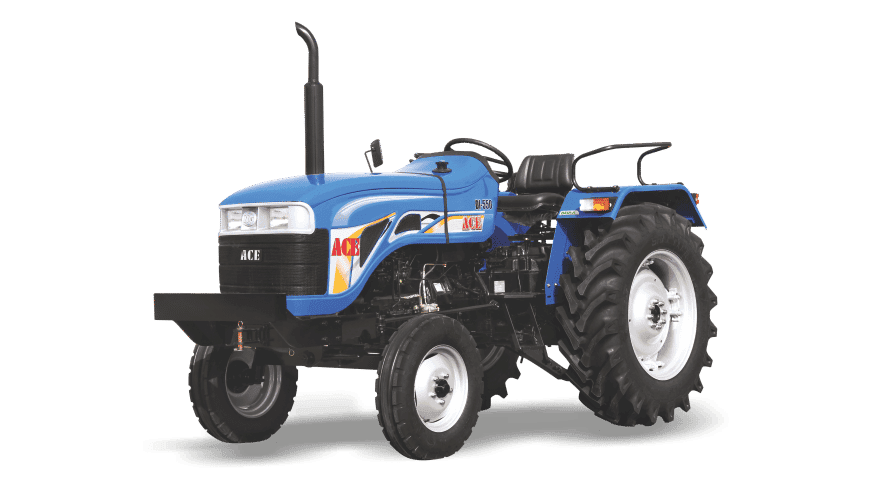

ACE DI-550 NG images
